In the intricate ecosystem of battery manufacturing, high-temperature furnaces stand as unsung workhorses, enabling the synthesis of materials that underpin the performance, safety, and efficiency of modern batteries. From lithium-ion to next-gen solid-state systems, these specialized heating devices facilitate thermal processes that transform raw powders into functional components with precisely engineered structures. Operating at temperatures ranging from 500°C to over 3000°C, they dictate critical material properties such as crystallinity, porosity, and chemical homogeneity. This article explores the multifaceted role of high-temperature furnaces in battery material preparation, delving into their applications across cathode, anode, and electrolyte synthesis, as well as their impact on scaling production and advancing battery technology.

1. Defining cfor Battery Applications

High-temperature furnaces designed for battery material synthesis are far more sophisticated than conventional industrial heaters. They are engineered to deliver precise temperature control (often within ±1°C), programmable heating/cooling rates, and tailored atmospheric conditions—features indispensable for producing consistent, high-performance materials. Common types include:

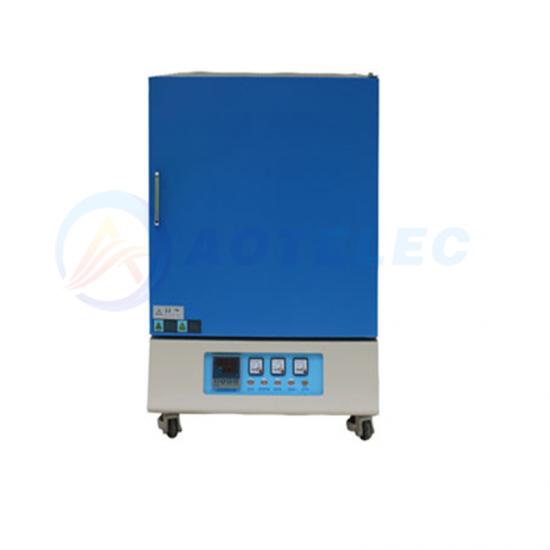

Box furnaces: Used for batch processing of cathode and anode powders, with capacities ranging from laboratory-scale (1–10 liters) to industrial-scale (100+ liters).

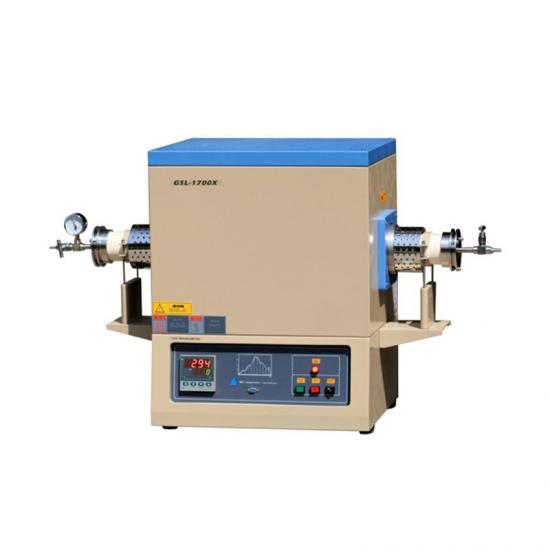

Tube furnaces: Ideal for continuous synthesis under controlled gas environments (e.g., argon, nitrogen, or oxygen), critical for preventing oxidation of sensitive materials like lithium metal precursors.

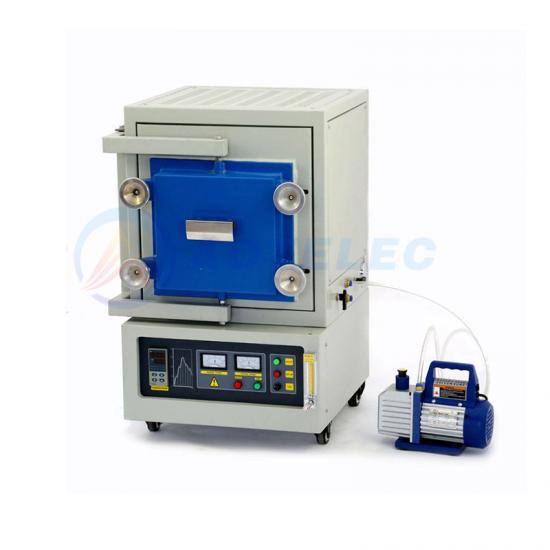

Vacuum furnaces: Employed for high-purity material production, such as solid electrolytes, where residual gases could contaminate the final product.

Roller hearth furnaces: Enable large-scale, automated sintering of electrode sheets or ceramic electrolyte pellets, essential for mass-producing EV battery components.

These furnaces leverage heating technologies like resistance heating (nichrome or molybdenum disilicide elements), induction heating, or microwave heating, each chosen based on the required temperature range and energy efficiency. For instance, microwave furnaces excel at rapid heating (up to 1500°C in minutes) for small-batch research, while resistance-heated roller hearth furnaces dominate industrial lines for their stability in high-volume production.

2. Shaping Cathode Materials: From Powders to Functional Crystals

Cathode materials are the "energy reservoirs" of a battery, storing lithium ions during charging and releasing them during discharge. Their performance—measured by capacity, voltage, and cycle life—depends heavily on crystalline structure, which is forged in high-temperature furnaces through processes like calcination and sintering.

2.1 Calcination: Purifying and Activating Precursors

Before sintering, raw precursors (e.g., lithium carbonate, nickel oxide, cobalt oxide) undergo calcination—a thermal treatment at 500–800°C—to remove volatile impurities (moisture, carbon dioxide) and initiate phase formation. For example, in lithium iron phosphate (LiFePO₄, LFP) synthesis, calcining a mixture of Li₂CO₃, FePO₄, and carbon at 600°C for 8 hours drives off CO₂, forming a preliminary LFP phase. This step is critical: residual moisture or carbonates would disrupt ion diffusion in the final cathode, reducing capacity.

2.2 Sintering: Engineering Crystalline Order

Sintering, typically performed at 800–1200°C, is where the cathode’s functional structure emerges. At these temperatures, atoms in the precursor powders diffuse across particle boundaries, forming dense, well-ordered crystals. For nickel-manganese-cobalt (NMC) oxides—widely used in EV batteries—sintering at 900–1000°C in oxygen-rich atmospheres ensures uniform distribution of Ni²⁺, Mn⁴⁺, and Co³⁺ ions in the layered lattice. This homogeneity prevents voltage fade during cycling, a common issue in poorly sintered cathodes.

High-temperature furnaces also enable doping—introducing trace elements to enhance properties. For instance, sintering NMC with small amounts of aluminum at 1050°C stabilizes the crystal structure, improving thermal stability and reducing the risk of thermal runaway in EV batteries. The furnace’s precise temperature control is vital here: even a 50°C deviation can cause uneven doping, leading to inconsistent performance across battery cells.

3. Refining Anode Materials: Enhancing Conductivity and Stability

Anodes store lithium ions during charging, and their efficiency hinges on electrical conductivity and structural resilience. High-temperature furnaces play a defining role in processing both traditional and next-gen anode materials.

3.1 Graphitization: Transforming Carbon into High-Performance Anodes

Graphite, the dominant anode material in lithium-ion batteries, requires graphitization—heating carbon precursors (e.g., petroleum coke) to 2500–3000°C in inert atmospheres. This extreme heat rearranges carbon atoms into hexagonal layers, a structure with high lithium intercalation capacity (372 mAh/g) and low volume expansion (≈10%). Furnaces used for graphitization must maintain strict temperature uniformity; a 100°C gradient across the batch would result in mixed graphitic and amorphous phases, reducing conductivity.

3.2 Sintering Silicon-Based Anodes

Silicon anodes, with a theoretical capacity 10x higher than graphite (4200 mAh/g), are a promising alternative but suffer from severe volume expansion (≈300%) during cycling. High-temperature sintering at 800–1200°C addresses this by forming silicon-carbon composites. For example, sintering silicon nanoparticles with phenolic resin-derived carbon at 1000°C creates a porous carbon matrix that cushions volume changes. The furnace’s controlled cooling rate—slow enough to avoid thermal stress but fast enough to prevent phase segregation—ensures the composite retains mechanical integrity over thousands of cycles.

4. Enabling Solid Electrolytes: The Backbone of Solid-State Batteries

Solid-state batteries (SSBs) promise safer, higher-energy storage than liquid-electrolyte systems, but their performance relies on solid electrolytes (SEs) with high ionic conductivity and mechanical stability. High-temperature furnaces are critical to synthesizing these SEs, particularly oxide and sulfide-based variants.

4.1 Oxide Electrolytes: Sintering for Density and Conductivity

Oxide SEs like Li₇La₃Zr₂O₁₂ (LLZO) require sintering at 1100–1200°C to achieve dense, defect-free structures. At these temperatures, zirconium and lanthanum ions diffuse into the lithium oxide lattice, forming a garnet crystal structure that conducts Li⁺ ions efficiently (10⁻⁴–10⁻³ S/cm). Furnaces must maintain oxygen-rich atmospheres during sintering to prevent reduction of Zr⁴⁺, which would create electron-conducting defects and short-circuit the battery.

4.2 Sulfide Electrolytes: Low-Temperature Sintering with Precision

Sulfide SEs (e.g., Li₇P₃S₁₁) operate at lower sintering temperatures (200–500°C) but still depend on furnaces for controlled phase formation. Unlike oxides, sulfides react with oxygen and moisture, so furnaces must maintain strict inert (argon) or reducing atmospheres. Sintering at 400°C for 2 hours bonds Li₂S, P₂S₅, and other precursors into a glass-ceramic structure with ionic conductivities up to 10⁻² S/cm—competitive with liquid electrolytes.

5. Advanced Control: Atmosphere, Kinetics, and Scalability

The versatility of high-temperature furnaces lies in their ability to tailor thermal and atmospheric conditions, enabling customization for diverse materials.

Atmosphere control: For lithium-rich cathodes (e.g., Li₂MnO₃-LiNiO₂), sintering in 5% H₂/Ar atmospheres reduces Mn⁴⁺ to Mn³⁺, enhancing capacity. In contrast, nickel-rich NMC requires oxygen to prevent Ni²⁺ migration, which would distort the layered structure.

Heating/cooling kinetics: Rapid heating (10–20°C/min) in microwave furnaces produces nanoscale cathode particles with large surface areas, accelerating ion diffusion. Slow cooling (1–5°C/min) in box furnaces minimizes internal stresses in ceramic electrolytes, preventing cracking.

Scalability: Industrial roller hearth furnaces, with conveyor belts moving materials through temperature zones, produce up to 10 tons of cathode powder daily—critical for meeting EV battery demand. Their modular design allows integration with upstream mixing and downstream coating processes, streamlining production.

6. Challenges and Innovations

Despite their importance, high-temperature furnaces face challenges: energy consumption (sintering at 1000°C uses ≈500 kWh/ton of material), and thermal gradients in large batches. Innovations like hybrid furnaces (combining resistance and microwave heating) reduce energy use by 30%, while AI-driven temperature control systems minimize gradients to ±5°C. Additionally, continuous-flow furnaces with in-situ X-ray diffraction allow real-time monitoring of phase changes, ensuring process consistency.

High temperature furnace is an indispensable equipment in the preparation process of battery materials, which plays an important role in improving the overall performance and safety of batteries. From forging crystalline cathodes and graphitic anodes to enabling solid electrolytes, their precision and versatility drive advancements in energy storage. As demand for high-energy, safe batteries grows—fueled by EVs and renewable grids—innovations in furnace technology will remain key to scaling production and unlocking next-gen battery chemistries. In essence, these furnaces are not just tools but architects of the clean energy future.
