Precision testing solution addresses critical adhesion challenges in lithium-ion battery manufacturing

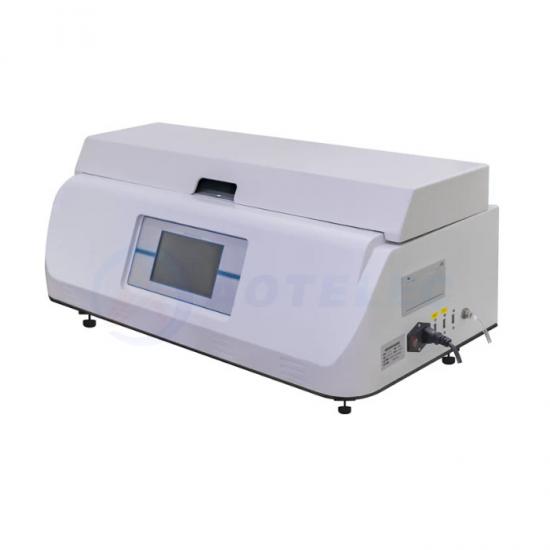

XIAMEN, China – AOT Battery Equipment Technology Co., Ltd., a leading manufacturer of lithium battery research and production equipment since 2006, has announced the availability of its AOT-MSK-TE602-PS Peel Strength Tester, a laboratory-scale instrument designed to measure the adhesion force between active electrode materials and current collectors in lithium-ion battery electrodes.

As the global lithium battery industry continues its rapid expansion, manufacturers face increasing pressure to ensure electrode structural stability throughout the battery cycle life. Poor adhesion between electrode coatings and metal foils can lead to detachment, delamination, capacity attenuation, and short-circuit risks. The MSK-TE602-PS addresses these quality control challenges by providing precise, repeatable peel strength measurements essential for production quality assurance and material research and development.

Versatile Testing Capabilities

The MSK-TE602-PS supports two primary test modes: coefficient of friction testing and 180-degree peel strength testing. The instrument offers three interchangeable loading ranges—0-5 N, 0-10 N, and 0-30 N—with 0.5 class accuracy, enabling users to select the appropriate sensitivity for their specific application.

Testing speed is continuously adjustable from 1 to 600 mm/min, providing flexibility for diverse material testing requirements. The system is equipped with a wide-range, high-precision temperature control unit that enables testing at temperatures from room temperature up to 99.9°C, allowing researchers to evaluate adhesion performance under various thermal conditions.

User-Centric Design and Compliance

The instrument features a 7-inch touchscreen interface for convenient, modern operation. An automatic slider release mechanism ensures precise dwell time and delivers highly repeatable test data. Both the test table and sliding block undergo demagnetization treatment to minimize systematic measurement errors.

The MSK-TE602-PS complies with multiple international and national standards, including GB/T 10006, GB/T 2790, GB/T 2791, GB/T 2792, ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, and TAPPI T549. CE approval is standard, with NRTL certification available upon request.

Technical Specifications

Beyond Battery Electrodes

While primarily designed for battery electrode testing, the MSK-TE602-PS is also suitable for evaluating other thin-film materials, including plastic films, metal foils, paper, cardboard, woven bags, medical patches, release paper, protective films, and adhesive composite products.

Company Background

Xiamen AOT Battery Equipment Technology Co., Ltd., established in 2006, operates manufacturing facilities spanning approximately 4,000 square meters with a workforce of over 65 employees. The company specializes in lithium battery equipment, laboratory battery raw materials, and lithium-ion battery research and development technology, supplying comprehensive solutions across the lithium battery value chain.

With production capacity of 50 sets per month and delivery lead times of 10-25 working days, AOT Battery is positioned to meet growing global demand for battery quality testing equipment.

For more information about the AOT-MSK-TE602-PS Peel Strength Tester, please visit www.aotbattery.com or contact AOT Battery Equipment Technology Co., Ltd.
